Description
Description

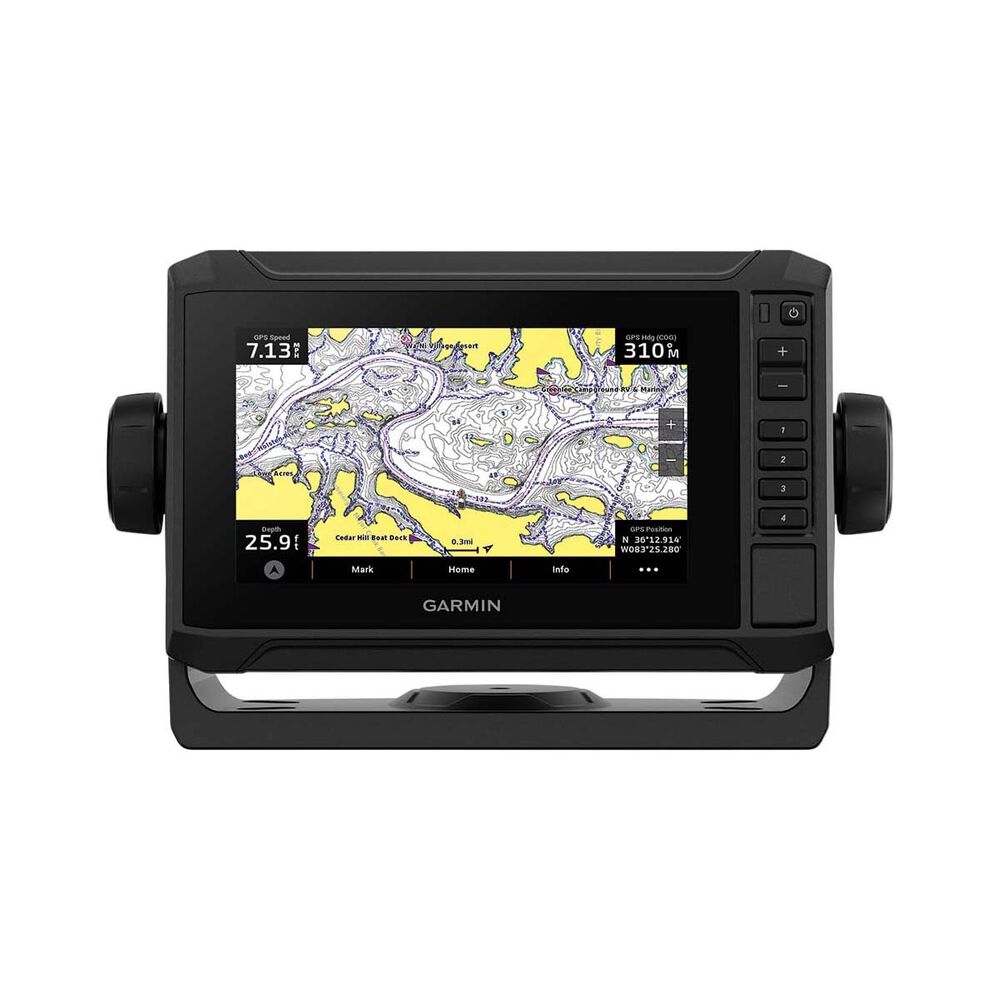

The Garmin EchoMap UHD2 65sv combines a bright 6-inch touchscreen with keyed-assist controls and ultra-high-definition scanning sonar for exceptional underwater imaging. This chartplotter includes the GT54UHD-TM transducer, delivering the highest resolution ClearVü and SideVü scanning sonar images available alongside high-wide CHIRP traditional sonar. The preloaded Garmin Navionics+ charts with Australian and New Zealand coverage include a 1-year subscription for daily updates and Auto Guidance+ technology.

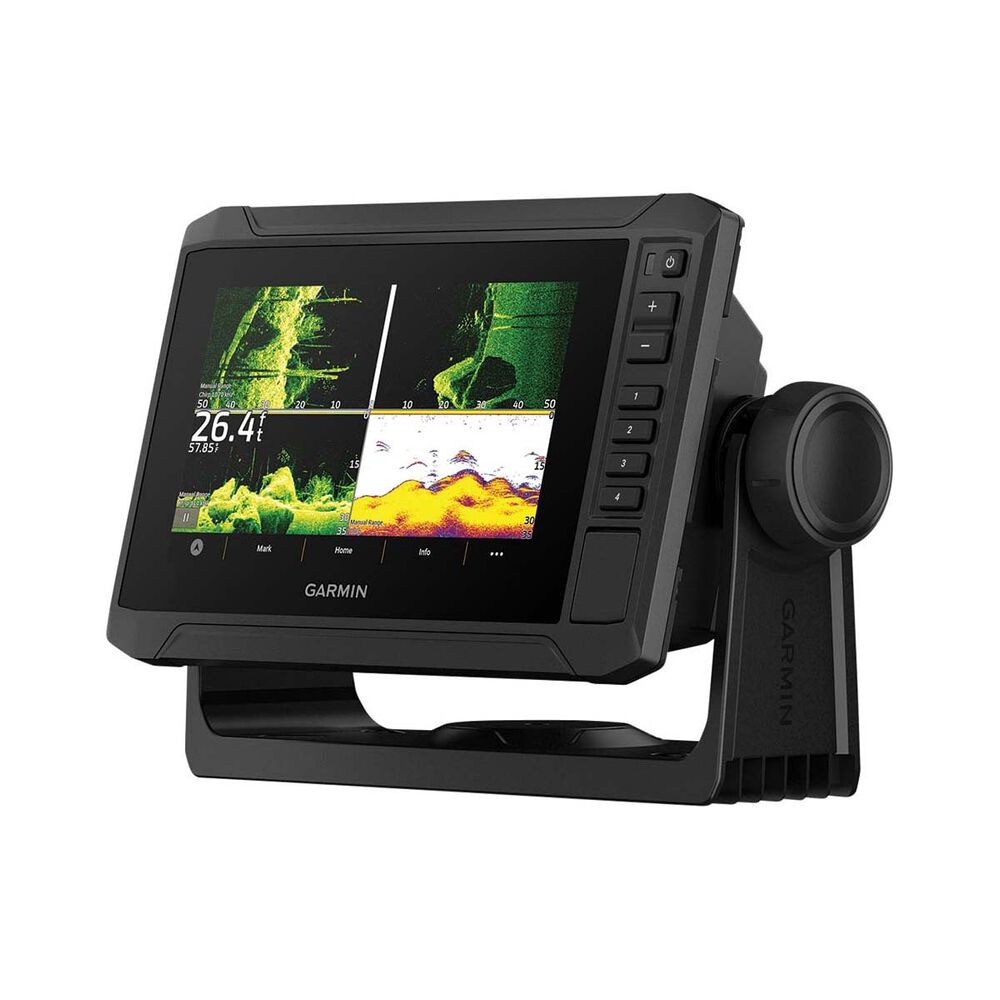

Three sonar technologies provide complete underwater awareness – traditional CHIRP sonar reveals fish arches and bottom structure, ultra-high-definition ClearVü shows detailed images up to 200 feet below at 800 kHz, and SideVü scanning sonar extends your view up to 500 feet to each side with dual frequencies (455/1200 kHz). Built-in Wi-Fi connectivity enables wireless sharing with another EchoMap UHD2 or Ultra 2 chartplotter, while ActiveCaptain app integration provides smart notifications and access to community mapping data.
The 65sv features a 6-inch WVGA touchscreen with 800 x 480 pixel resolution and delivers 500 watts RMS of sonar power. Weighing 0.8 kg and operating from 9-18 Vdc, the unit includes a quick-release bail mount, supports LiveScope live-scanning sonar (transducer sold separately), and features a microSD card slot supporting up to 1 TB capacity.
- 6-inch sunlight-readable touchscreen with keyed-assist and 800 x 480 WVGA resolution

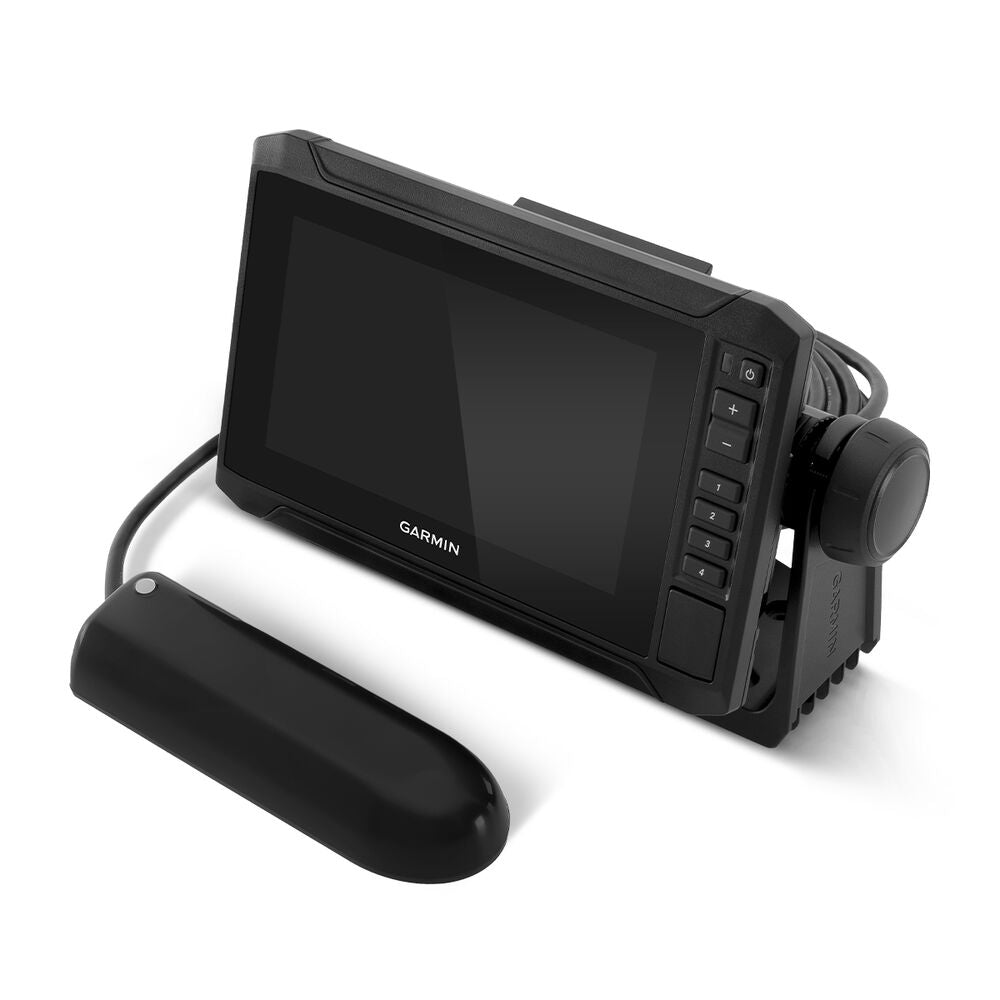

- GT54UHD-TM transducer with ultra-high-definition ClearVü and SideVü scanning sonar
- High-wide CHIRP traditional sonar for exceptional target separation
- 500W RMS sonar power across traditional, ClearVü and SideVü frequencies
- Preloaded Garmin Navionics+ charts for Australia and New Zealand with 1-year daily updates

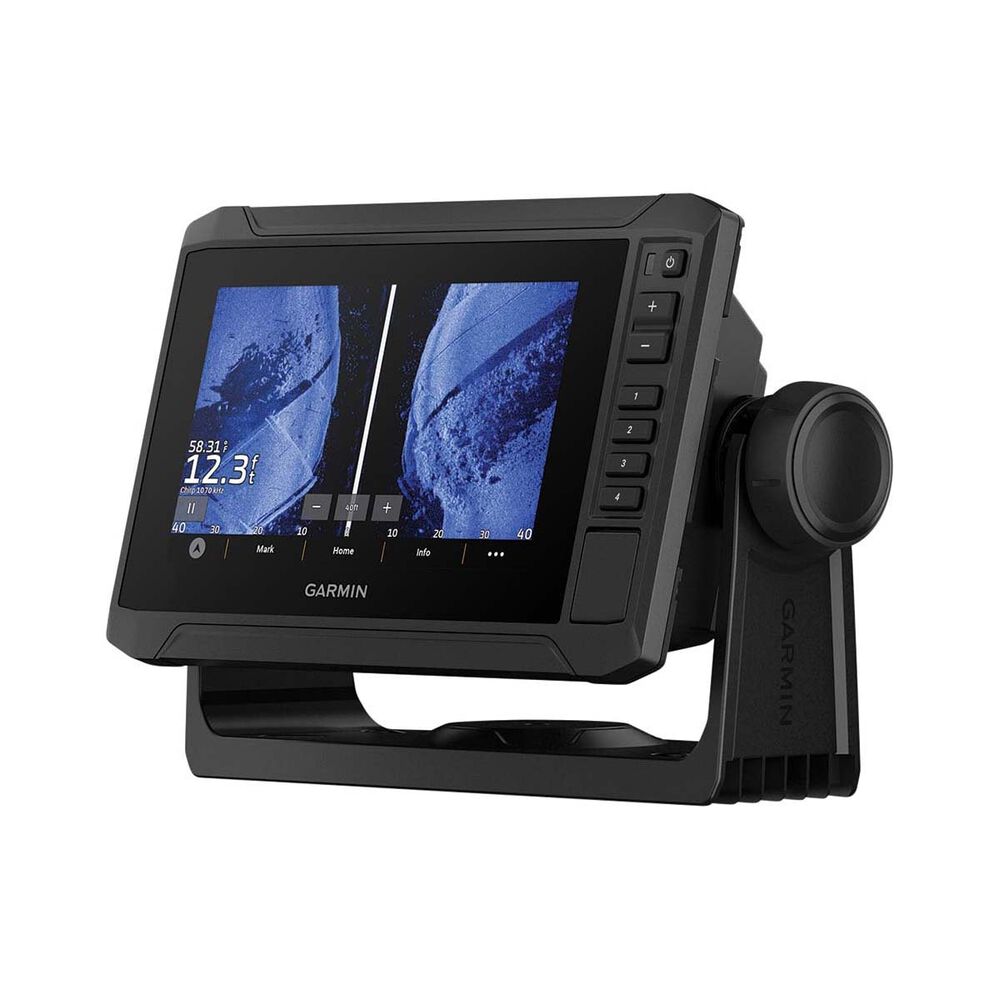

- SideVü dual-frequency scanning (455/1200 kHz) with up to 500-foot range
- ClearVü 800 kHz imaging to 200 feet depth
- Built-in Wi-Fi for wireless sonar sharing and ActiveCaptain app integration
- Auto Guidance+ technology for intelligent route planning

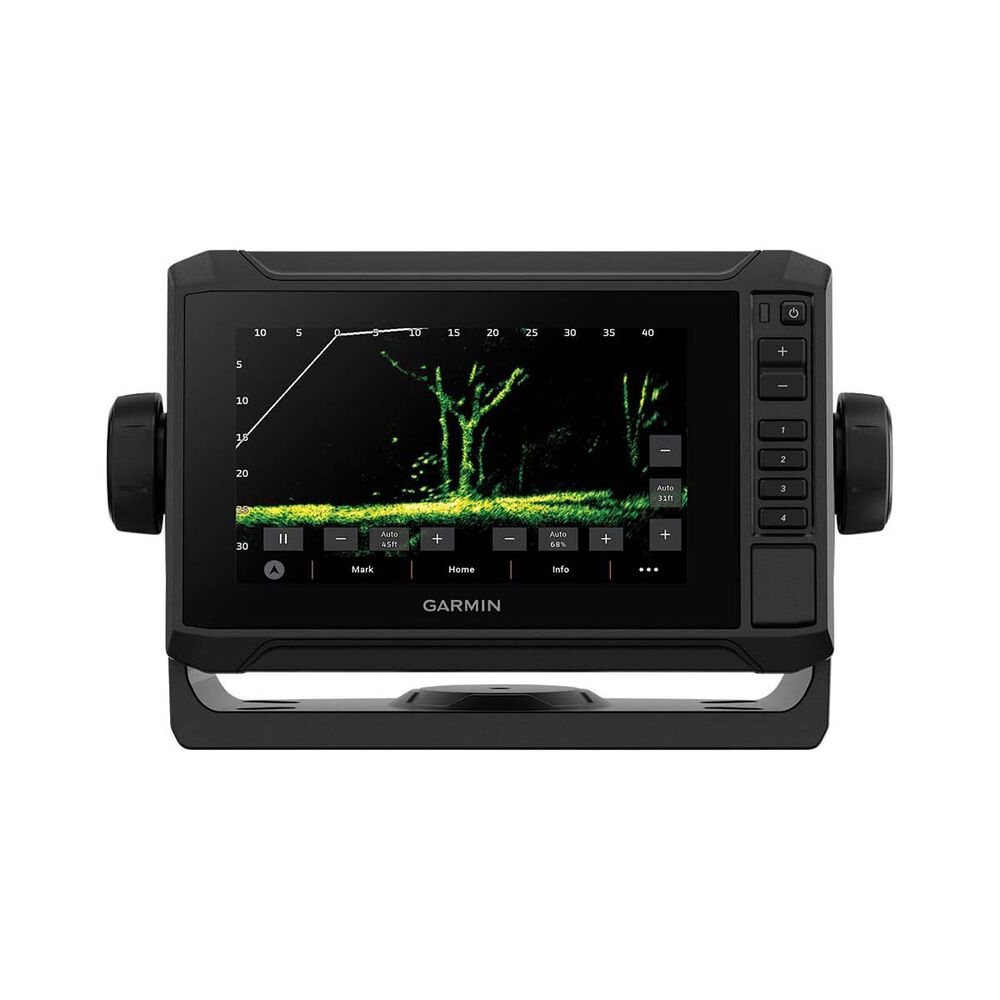

- LiveScope live-scanning sonar compatible (transducer sold separately)

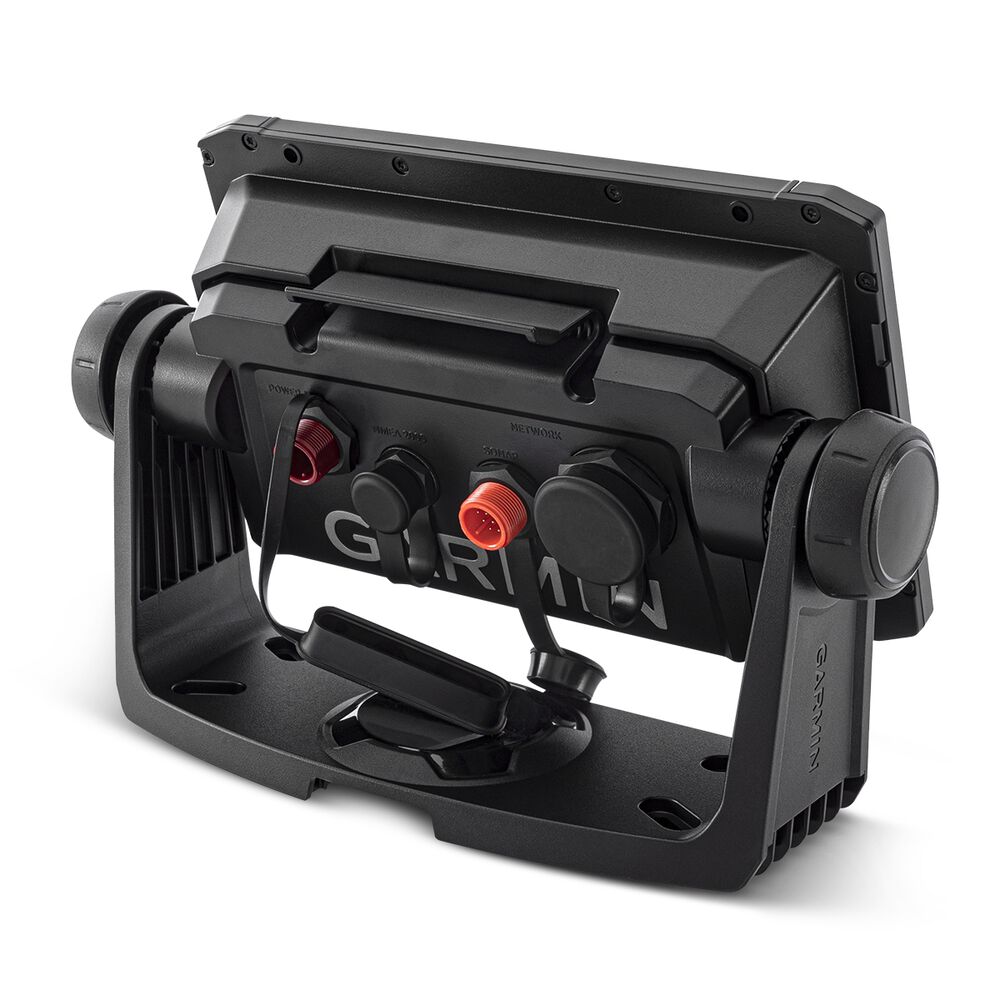

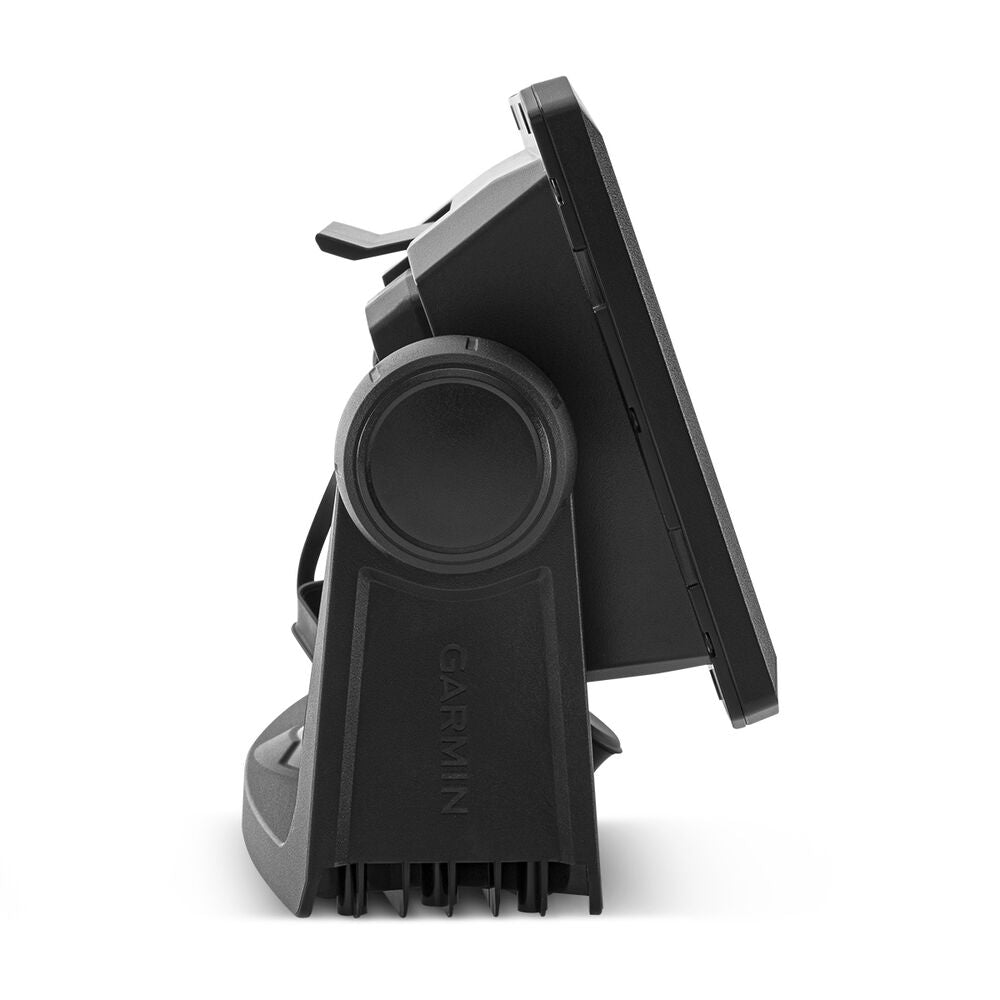

- Quick-release bail mount with protective sun cover
- IPX7 waterproof rating with -20°C to 55°C operating range
- MicroSD card slot supporting up to 1 TB capacity
