Garmin EchoMap Ultra 2 105sv Chartplotter With GT56UHD-TM Transduce...
Garmin EchoMap Ultra 2 105sv Chartplotter With GT56UHD-TM Transducer & Garmin Navionics+ Aus/NZ Mapping is backordered and will ship as soon as it is back in stock.
Description
Description

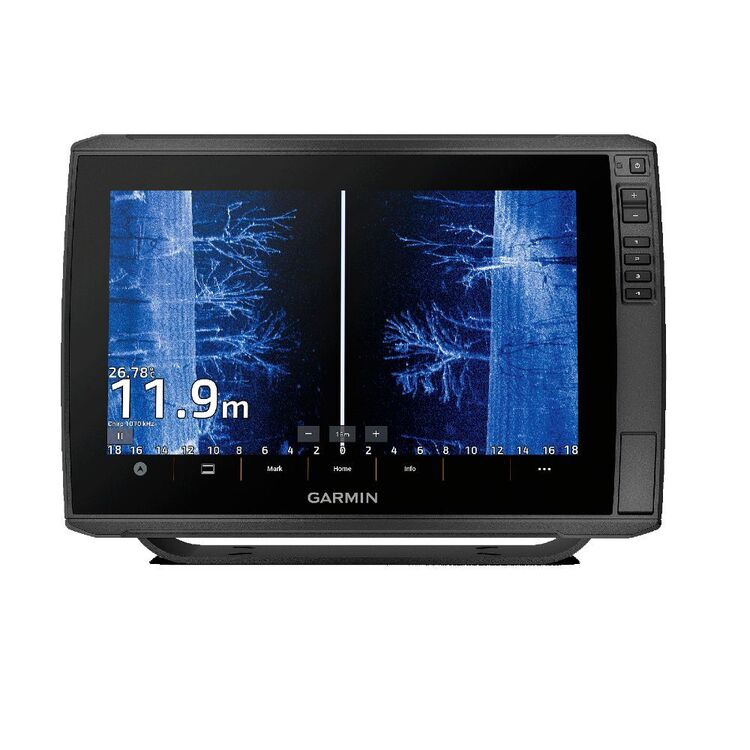

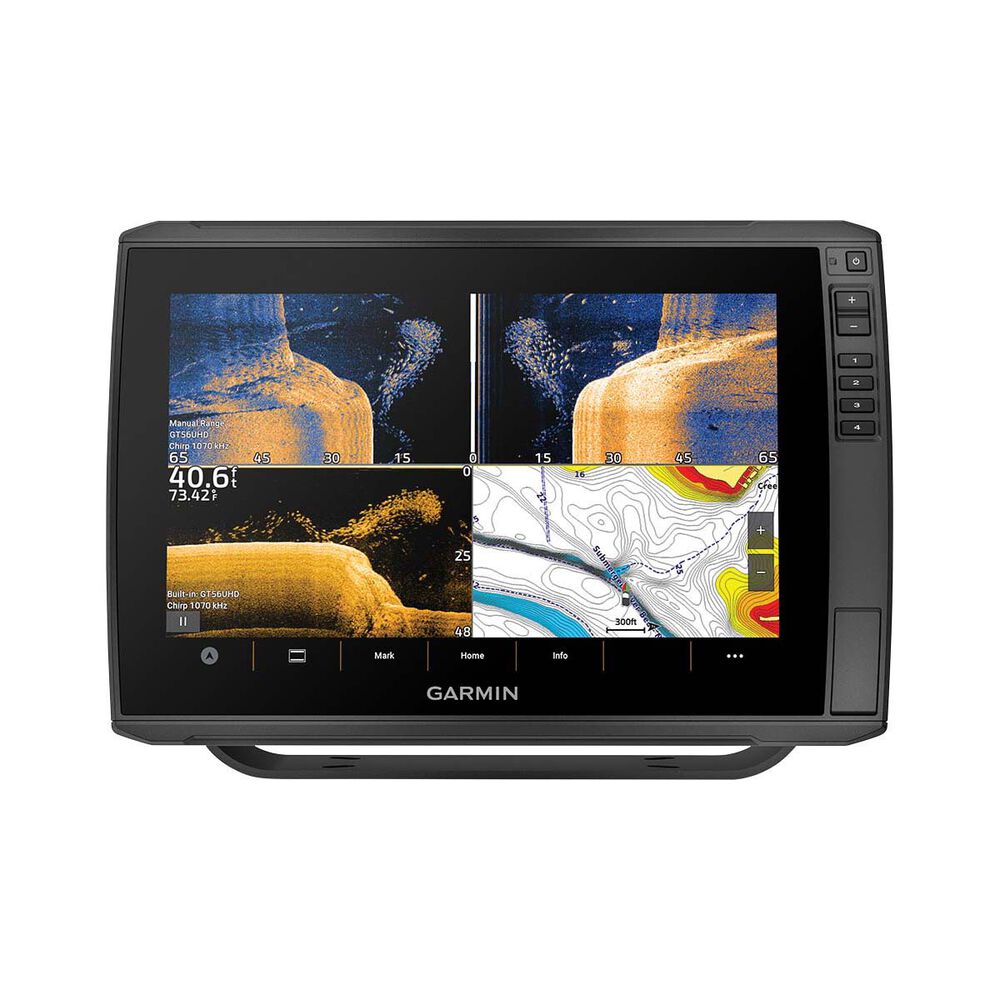

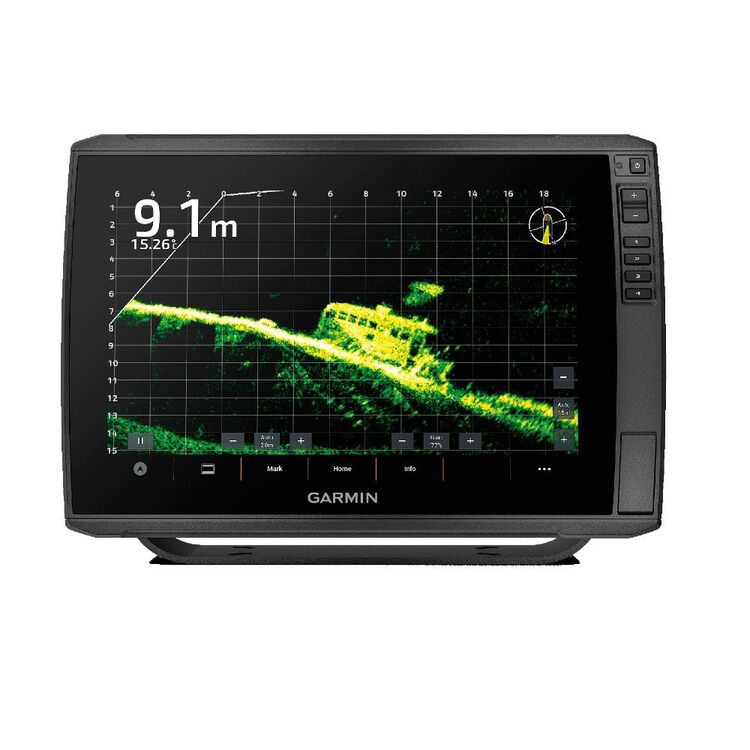

The Garmin EchoMap Ultra 2 105sv combines a brilliant 10-inch touchscreen with keyed-assist controls and the premium GT56UHD-TM transducer for professional-grade performance. This advanced chartplotter features enhanced processing power and a high-resolution WXGA display that delivers exceptional clarity for viewing sonar, charts and navigation data. Three ultra-high-definition sonar technologies – high-wide CHIRP traditional, ClearVü and SideVü scanning sonar – provide comprehensive underwater imaging, while the increased 600-watt RMS power output ensures superior performance in deeper waters.
Multi-band GPS technology with 10 Hz updates delivers improved position accuracy under bridges, along bluffs and in tree-covered coves. The dual microSD card slots provide expanded storage, while built-in Wi-Fi allows wireless sharing of sonar, waypoints and routes. HDMI output capability enables screen mirroring to external displays. ActiveCaptain app integration provides smart notifications, screen recording capability and access to community mapping data, while preloaded Garmin Navionics+ charts include a 1-year subscription for daily updates and Auto Guidance+ route planning.
The 105sv features a 10-inch WXGA touchscreen with 1280 x 800 pixel resolution and delivers 600 watts RMS across traditional CHIRP, ClearVü and SideVü frequencies. Weighing 1.75 kg and operating from 9-18 Vdc, the unit includes a quick-release bail mount, supports the full LiveScope lineup (transducers sold separately), and features dual microSD card slots each supporting up to 1 TB capacity.
- 10-inch sunlight-readable touchscreen with keyed-assist and 1280 x 800 WXGA resolution

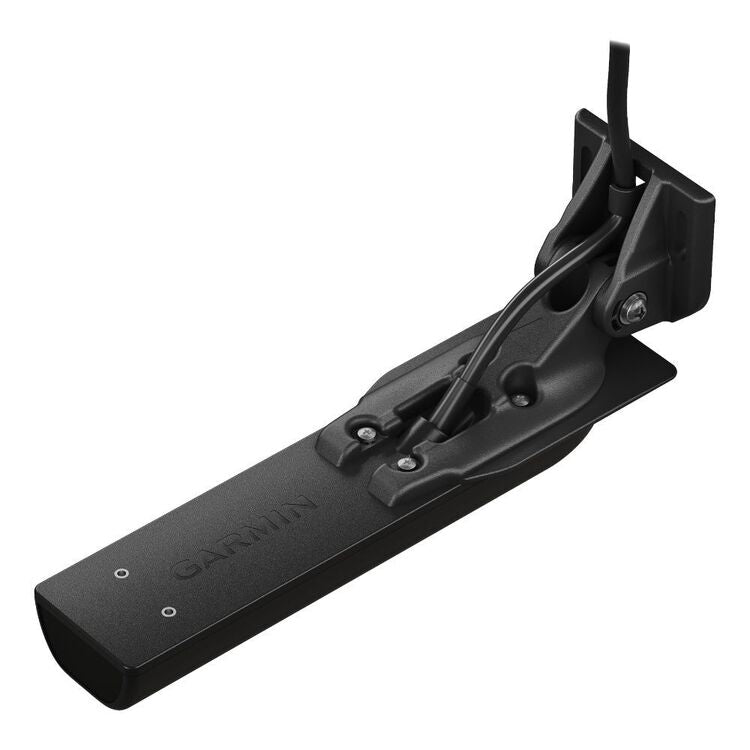

- GT56UHD-TM premium transducer with ultra-high-definition ClearVü and SideVü sonar
- 600W RMS sonar power across all frequencies
- Multi-band GPS with 10 Hz updates for improved position accuracy
- Multiple sonar frequencies: traditional (50/77/83/200 kHz), ClearVü and SideVü (260/455/800/1000/1200 kHz)
- Preloaded Garmin Navionics+ charts for Australia and New Zealand with 1-year daily updates
- HDMI output for screen mirroring to external displays
- Built-in Wi-Fi for wireless sonar sharing and ActiveCaptain app integration
- Auto Guidance+ technology for intelligent route planning
- Screen recording capability via ActiveCaptain app
- Full LiveScope live-scanning sonar lineup compatible (transducers sold separately)

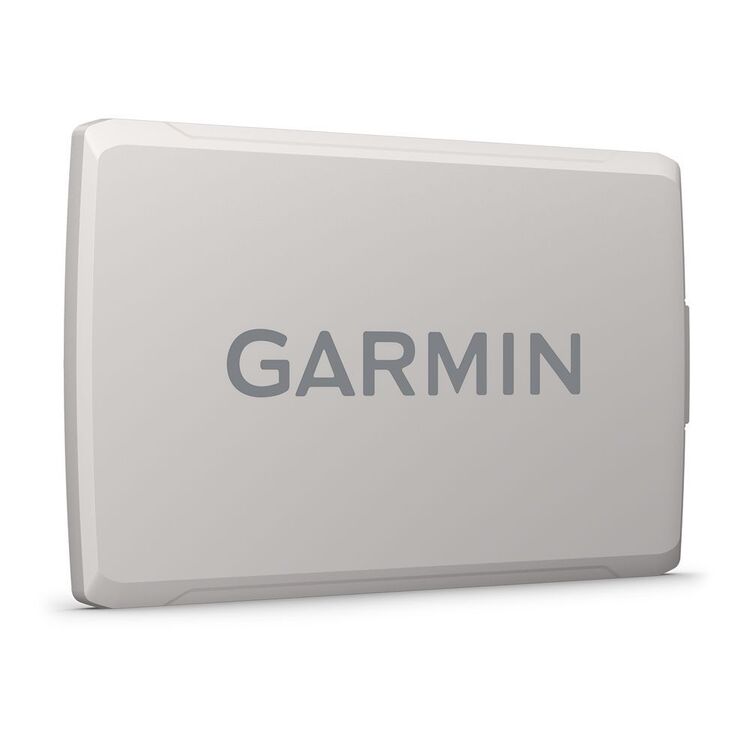

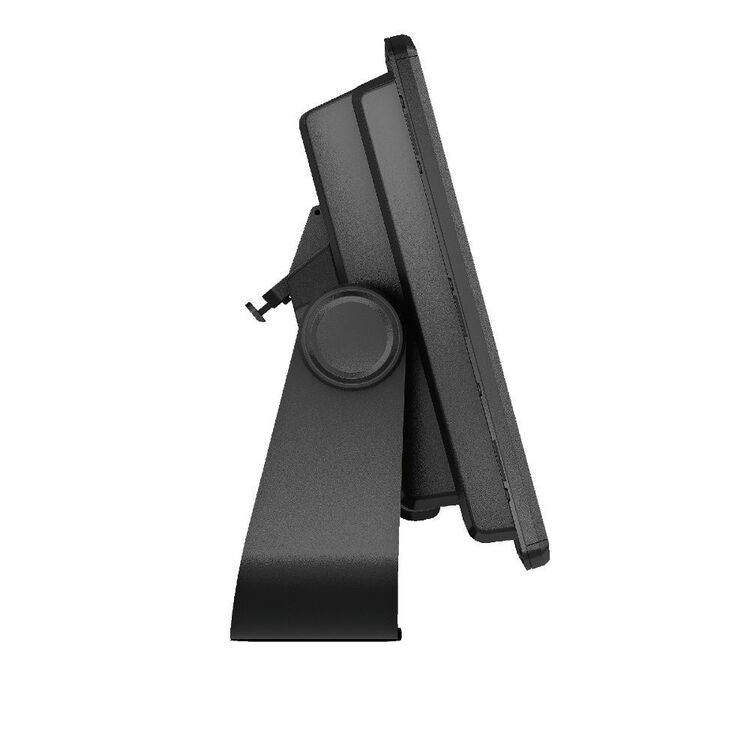

- Quick-release bail mount with protective sun cover
- Dual microSD card slots each supporting up to 1 TB capacity
- IPX7 waterproof rating with -15°C to 55°C operating range
