Garmin EchoMap Ultra 2 165sv Chartplotter With GT56UHD-TM Transducer & Garmin Navionics+ Aus/NZ Mapping

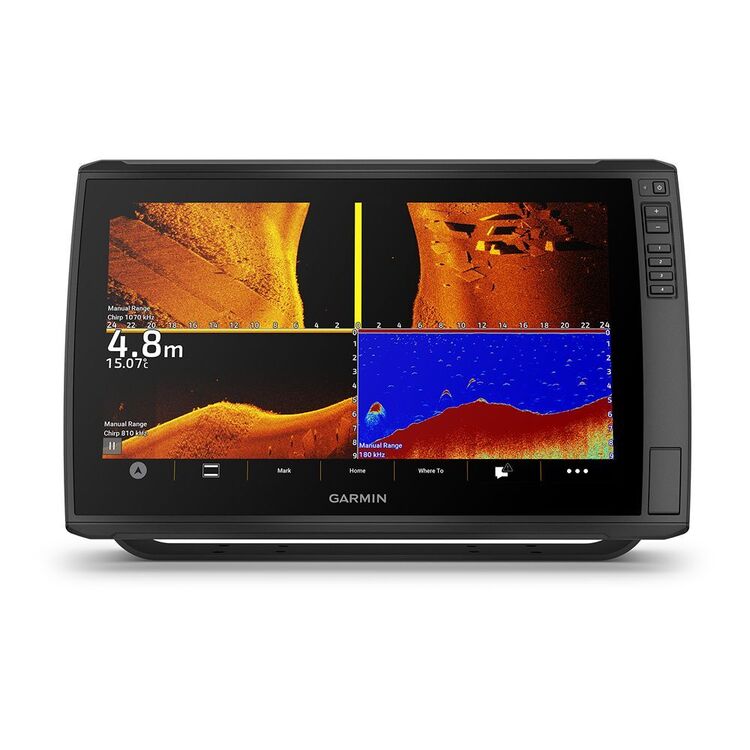

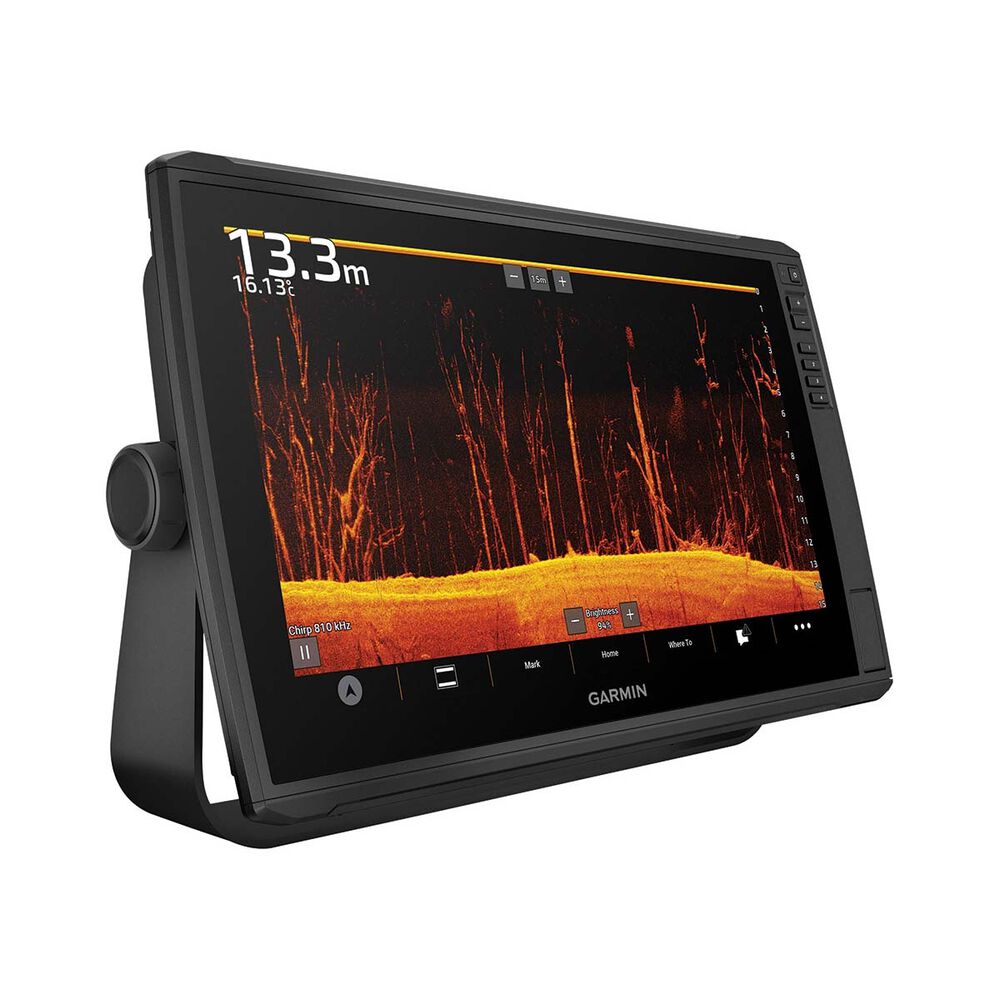

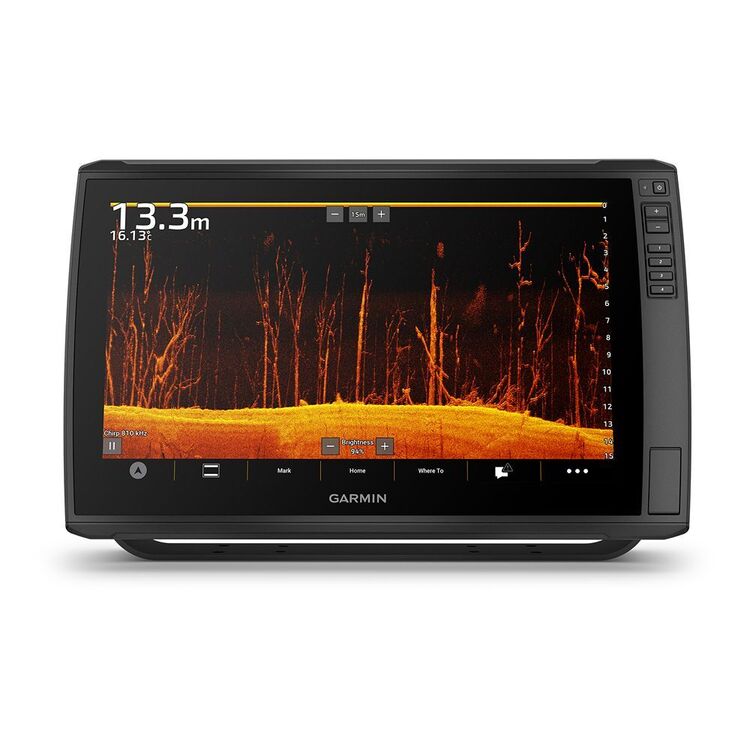

The Garmin EchoMap Ultra 2 165sv represents the pinnacle of the EchoMap series with a massive 16-inch full HD touchscreen that delivers unparalleled clarity and detail. This flagship chartplotter features a stunning 1920 x 1080 pixel IPS display with keyed-assist controls, providing the largest and sharpest screen Garmin has ever offered in the EchoMap lineup. Combined with the premium GT56UHD-TM transducer and 600-watt RMS sonar power, this system delivers ultra-high-definition ClearVü and SideVü scanning sonar alongside high-wide CHIRP traditional sonar for comprehensive underwater imaging.

The full HD IPS display technology ensures brilliant colour reproduction and wide viewing angles. Multi-band GPS with 10 Hz updates provides superior position accuracy, while HDMI output allows screen mirroring to external displays. Built-in Wi-Fi enables wireless sharing of sonar, waypoints and routes, and the dual microSD card slots provide extensive storage. ActiveCaptain app integration delivers smart notifications, screen recording capability and access to community Quickdraw Contours data, while preloaded Garmin Navionics+ charts include a 1-year subscription for daily updates and Auto Guidance+ technology.

The 165sv features a 16-inch full HD IPS touchscreen with 1920 x 1080 pixel resolution and delivers 600 watts RMS across traditional CHIRP, ClearVü and SideVü frequencies. Constructed from polycarbonate plastic and die-cast aluminium, the unit weighs 4.45 kg and operates from 9-18 Vdc. The chartplotter includes a quick-release bail mount, supports the full LiveScope lineup (transducers sold separately), and features dual microSD card slots each supporting up to 1 TB capacity.

• 16-inch full HD IPS touchscreen with keyed-assist and 1920 x 1080 pixel resolution

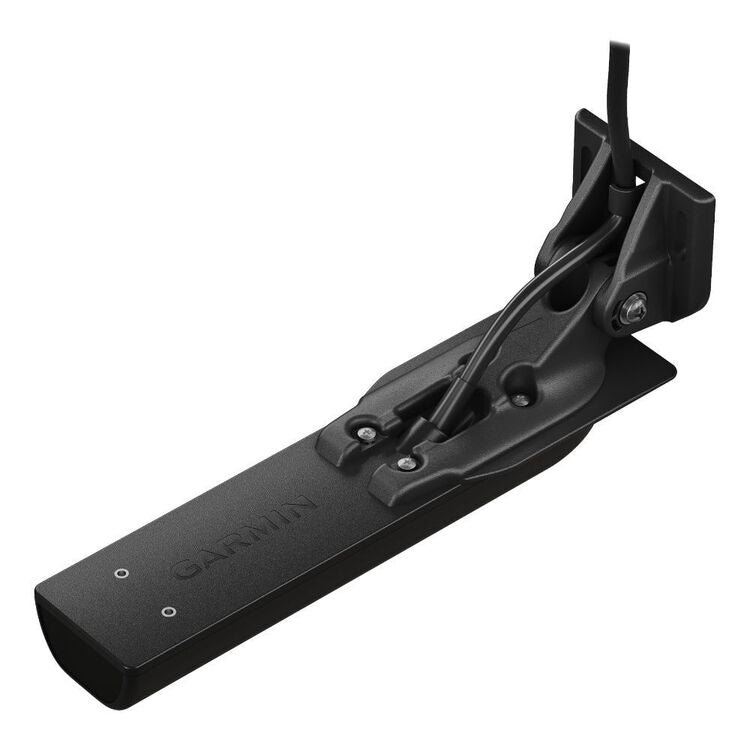

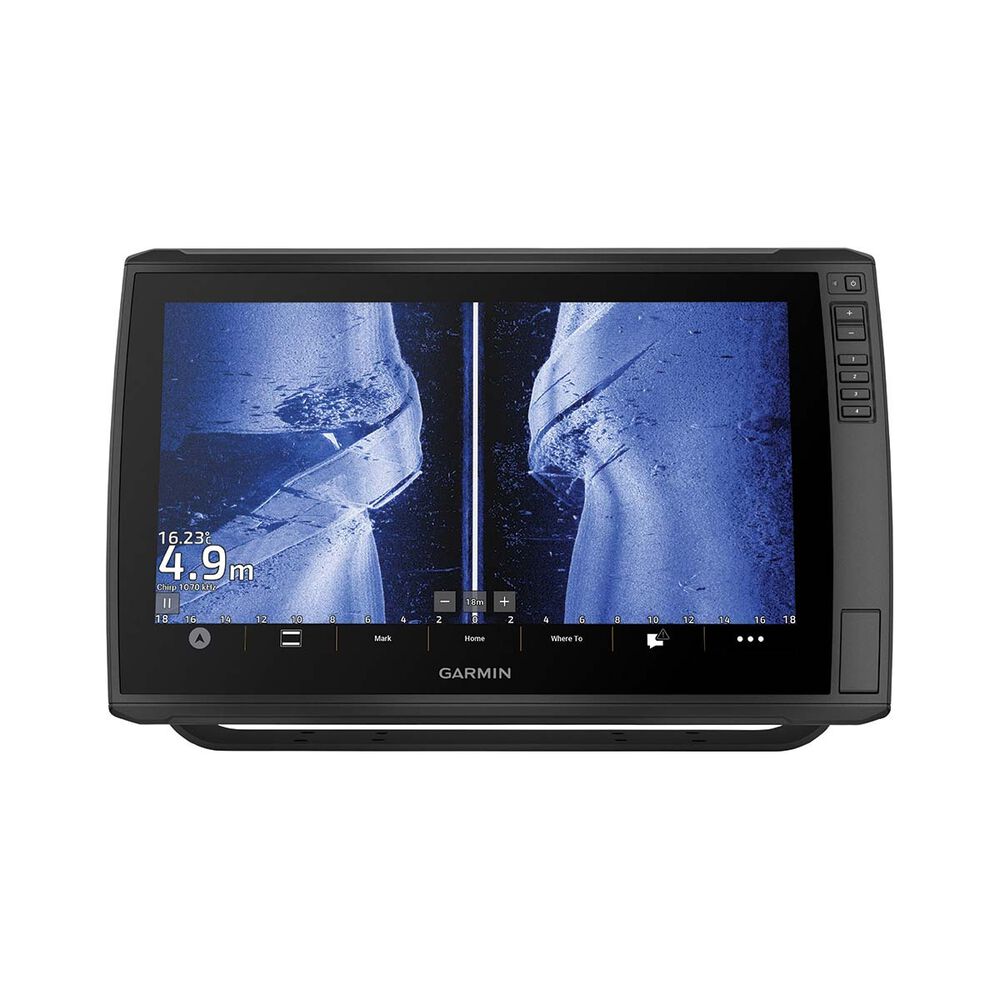

• GT56UHD-TM premium transducer with ultra-high-definition ClearVü and SideVü sonar
• 600W RMS sonar power across all frequencies
• IPS display technology for brilliant colours and wide viewing angles
• Multi-band GPS with 10 Hz updates for superior position accuracy
• Multiple sonar frequencies: traditional (50/77/83/200 kHz), ClearVü and SideVü (260/455/800/1000/1200 kHz)
• Preloaded Garmin Navionics+ charts for Australia and New Zealand with 1-year daily updates

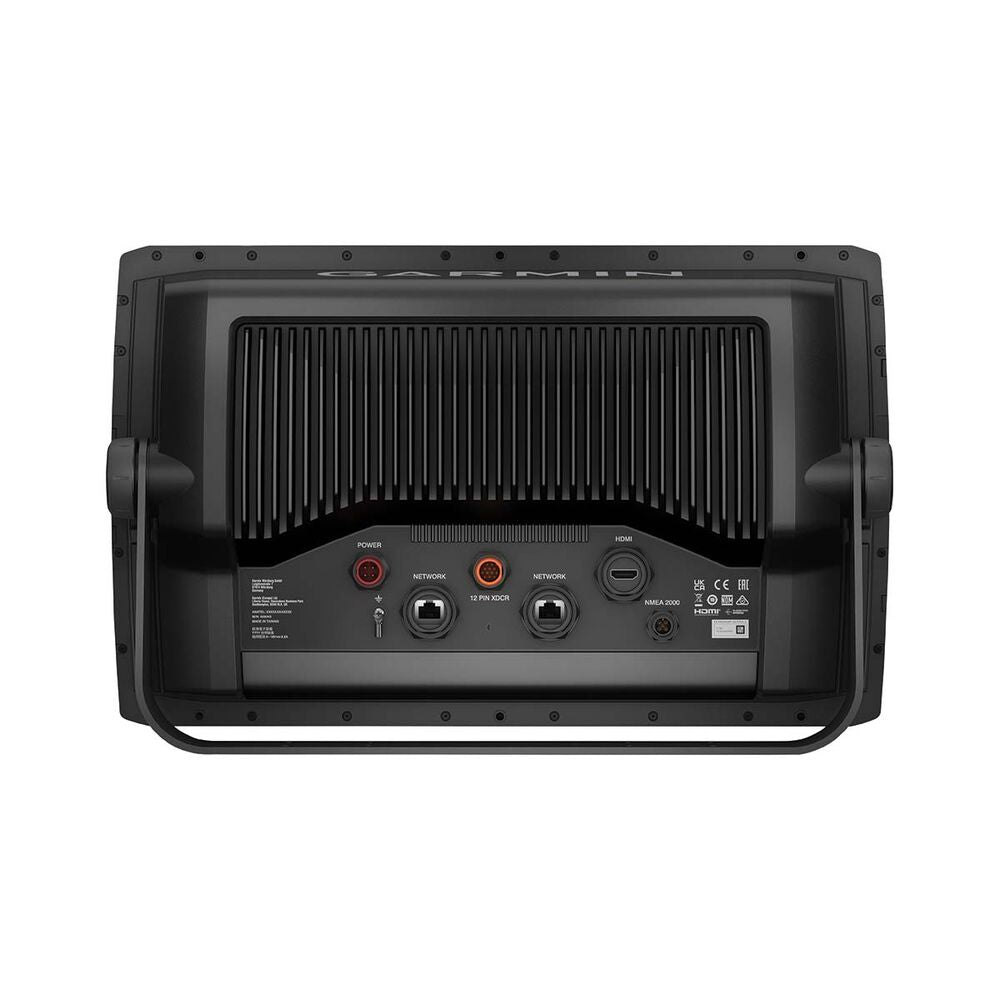

• HDMI output for screen mirroring to external displays or TVs
• Built-in Wi-Fi for wireless sonar sharing and ActiveCaptain app integration
• Auto Guidance+ technology for intelligent route planning
• Screen recording capability via ActiveCaptain app

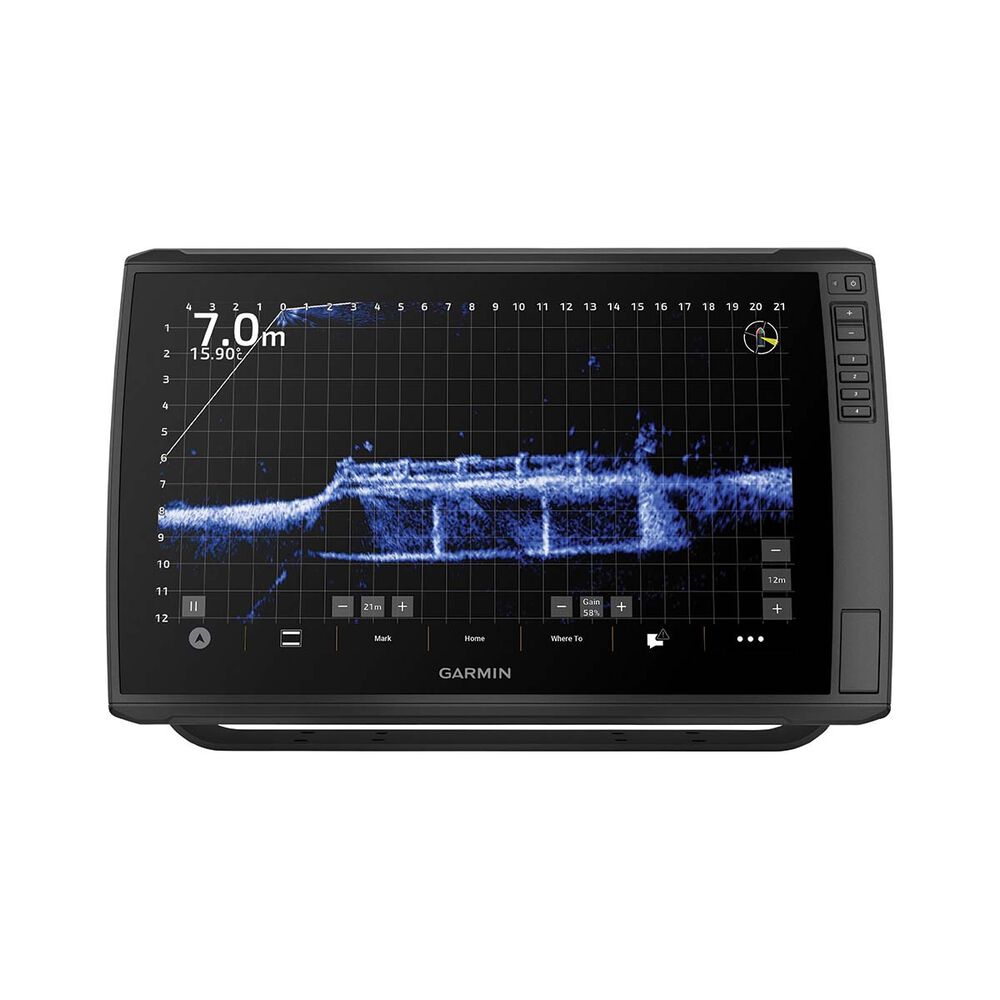

• Full LiveScope live-scanning sonar lineup compatible (transducers sold separately)

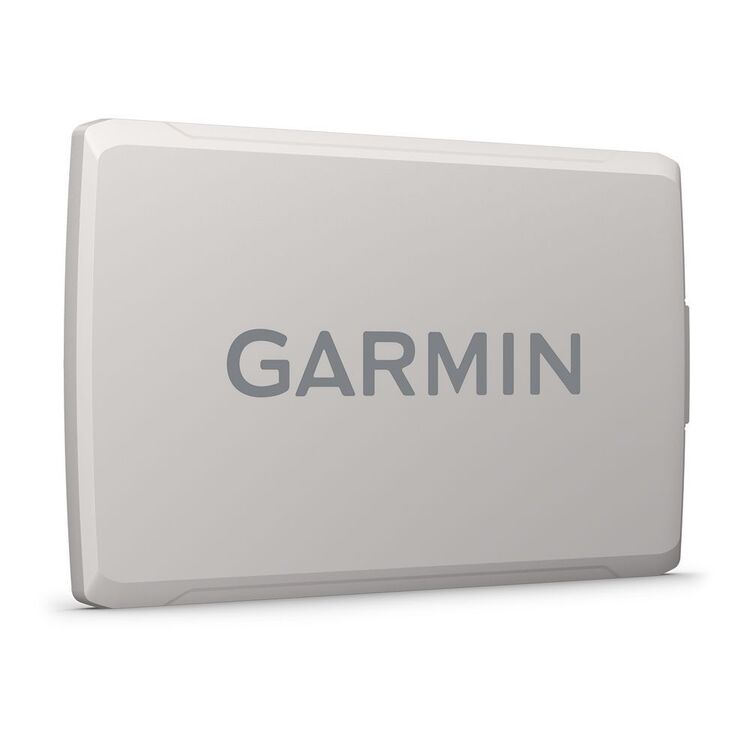

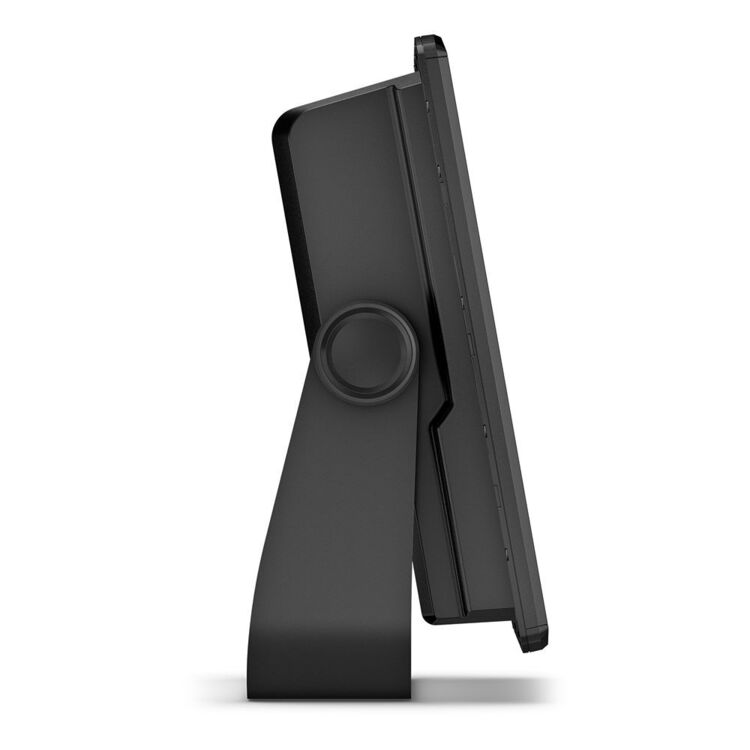

• Quick-release bail mount with protective sun cover
• Dual microSD card slots each supporting up to 1 TB capacity
• IPX7 waterproof rating with -15°C to 55°C operating range
