Garmin GT56UHD-TM 12 Pin Transom Mount Transducer
Garmin GT56UHD-TM 12 Pin Transom Mount Transducer is backordered and will ship as soon as it is back in stock.
Description
Description

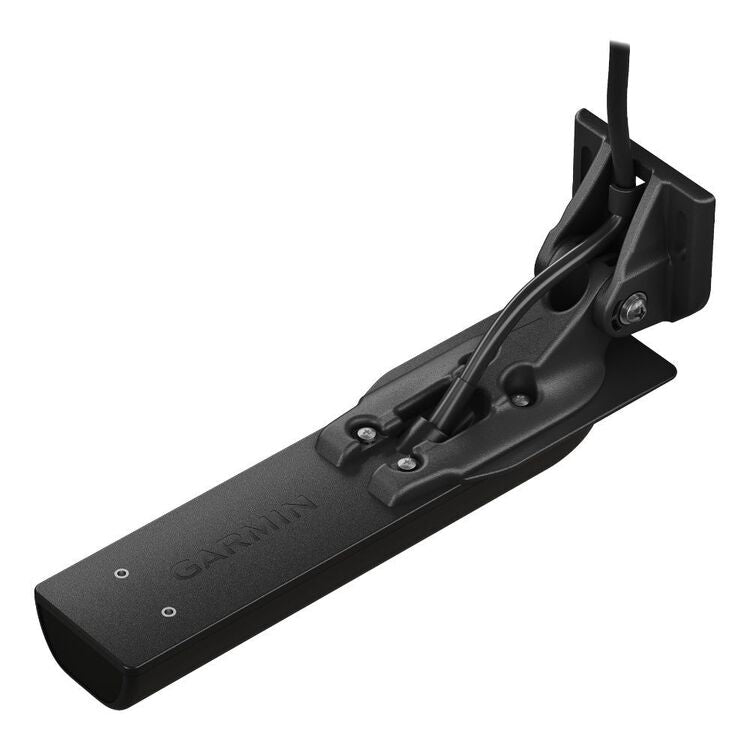

The Garmin GT56UHD-TM 12-Pin Transom Mount Transducer delivers ultra-high definition sonar imaging with high wide CHIRP traditional sonar, UHD ClearVü and UHD SideVü scanning technologies. The transducer features 350W high wide CHIRP operating at 150-240kHz reaching depths to 240m in freshwater, alongside 500W UHD scanning at 455/800/1000kHz frequencies. The UHD ClearVü provides detailed structure imaging to 120m depth whilst UHD SideVü offers 20% greater range at 1MHz frequency, scanning to 150m either side of the vessel.
The transom mount kit includes both transom and trolling motor mounting hardware for installation flexibility. The integrated temperature sensor monitors water conditions whilst the 25-foot cable provides routing flexibility. Compatible with Garmin echoMap UHD2, echoMap Ultra and GPSMAP xsv series chartplotters.
GT56UHD-TM – Ultra-High Definition All-In-One Transducer
- High Wide CHIRP Traditional – 350W at 150-240kHz, 240m freshwater depth
- UHD ClearVü and SideVü – 500W scanning with 20% greater range at 1MHz
- Dual Mount Hardware – Includes transom and trolling motor mounts
- Garmin Part 010-13073-00 – Compatible with UHD2, Ultra and xsv series
